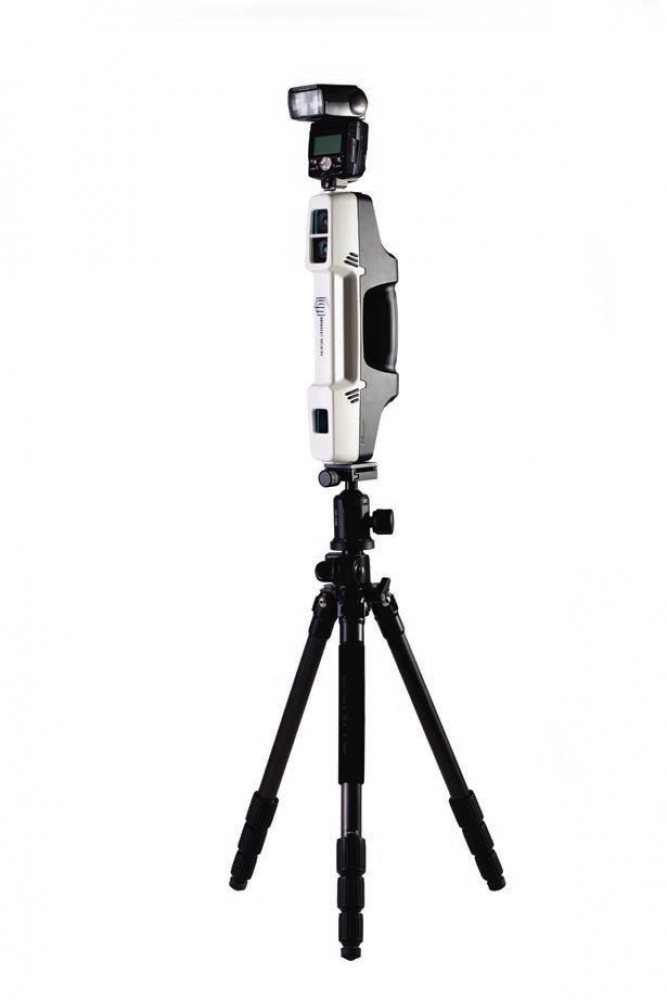

F6 SMART

The F6 SMART is the market leader 3D handheld scanner for fast scanning of big objects and large
areas from short to far ranges. Based on a patent algorithm of innovative encoding F6 SMART provides
superb quality of data making it the ultimate device for scanning complex scenes within seconds.
The F6 Smart is operated by Echo, an advanced and easy-to-use integrated software with high-end features
such as:

• Advanced scanning modes with real time feedback
• Powerful 3D data editing tools
• Data quality for controlling distances and accuracies
• Flexible integration to 3rd party software based on
Mantis Vision DLL or SDK
• Advanced meshing with full color projection
• Matching models from different scans
• Multiple interfaces: tablet/laptop/VR
• User interface: touch screen/ desktop

SYSTEM BENEFITS:

• IR light - enables work in any lighting conditions from complete darkness to day light
• Ergonomic rubberized handgrip
• No scene preparation – geometry is deciphered by the encoding
• 2 layer modes of operation: static and dynamic
• Accessibility to hidden places
• Hot shoe connection for:
- Wireless synchronization of multiple F6 for capturing objects in dynamic motion
- Flash light
• User friendly – professionals can operate the system after a short training
• Unique design and light weight - suitable for the harsh demands of the outside

INDUSTRIES AND APPLICATIONS:

F6 SMART is suitable for a wide variety of uses and
applications in:
• Architecture, Engineering, Construction
• Forensics
• Oil & Gas
• Automotive
• Education & Research
• Aviation
• Power Plants
• Military
• VR game designers
• Simulations and Training

TECHNICAL SPECIFICATIONS

Hardware specifications

Accuracy 0.2% - 0.1% upon scanning distance
XY point density 5mrad
Low noise level less than 0.5mm@1meter
Eye safety Class 1
Ambient lighting From complete darkness to daylight
Depth of field 4.5 – 0.5m
Linear field of view HxW 510 x 670mm, closest range
Linear field of view HxW 4585 x 6070mm, furthest range
Angular field of view HxW 54 x 68°
RGB camera resolution 1.3MPix
Video frame rate 8fps
Exposure time 0.04 – 0.005 s
Data acquisition speed 640,000 points/s
Dimensions, HxDxW 32 x 12 x 4.5 cm
Weight 1kg
Power consumption Internal battery
Calibration No special equipment required
Working temperature –10° to +50° / 14’ to 122’F

Software specifications

Multi-core processing Yes
Support OS Windows 8/10
Output formats PTS, ASCII, PLY, E57, STL
Interface USB 2.0
